Skelly Chair

UPDATED 07/10/26

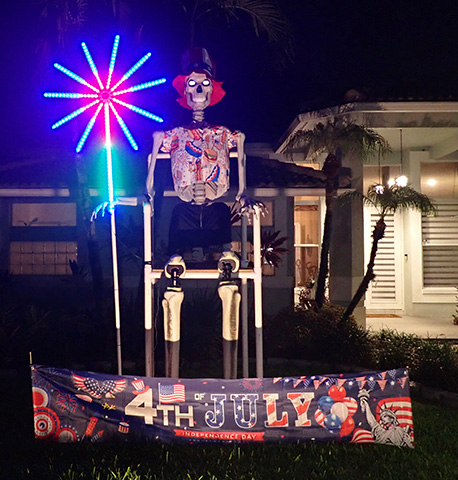

Early this year I purchased a used 12 foot HD skeleton at a great deal that I intended to use for other uses instead of just standing. Purchased a complete skelly 10 joint kit from Napier Family Lights.

This page provides an overview of the PCV chair that was made to put him in.

Skelly_Chair_instructions.pdf

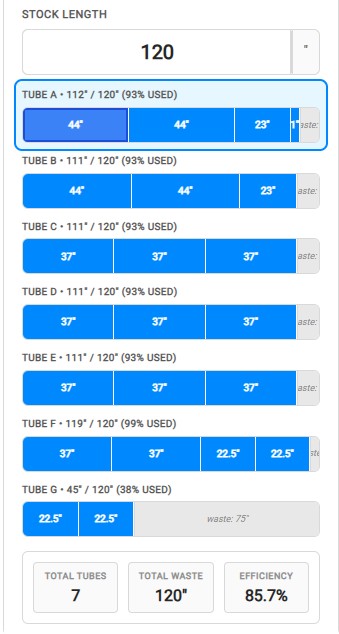

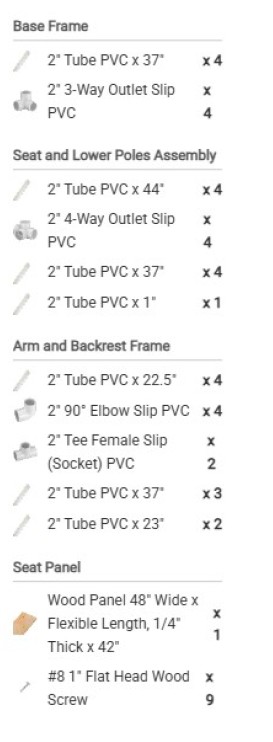

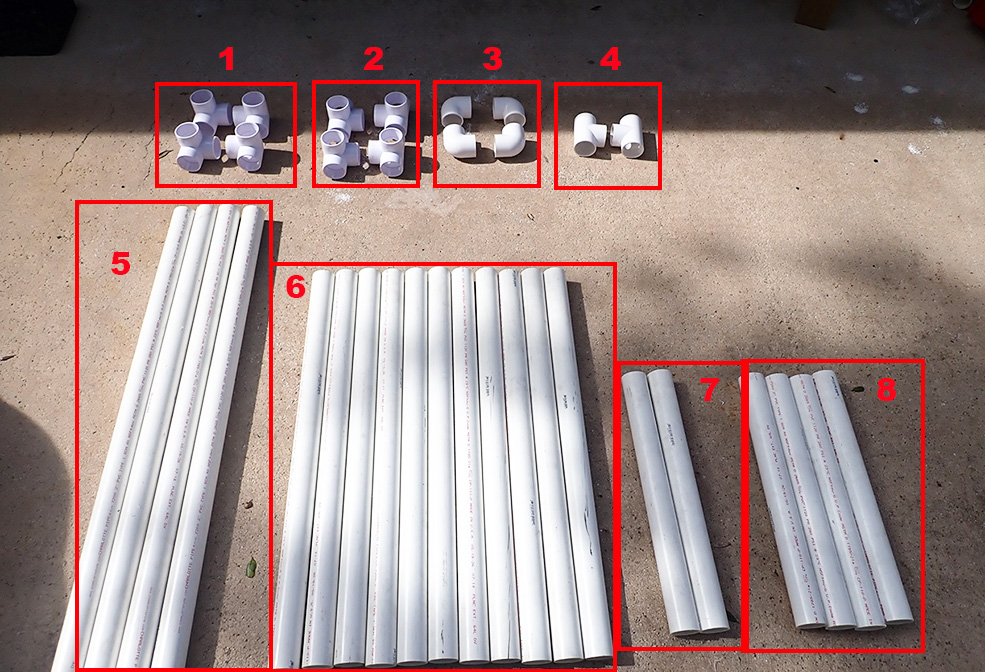

Below shows the 2" PCV parts used to make the chair. Purchased the connectors from Amazon.

1 - 4 2" 3-way fittings

2 - 4 2" 4-way fittings

3 - 4 90 degree fittings

4 - 2 Tee female fittings

5 - 4 44" length 2" PVC

6 - 11 37" length 2" PVC

7 - 2 23" length 2" PVC

8 - 4 22.5" length 2" PCV

Not shown is one 42" x 42" cut 1/4" plywood or similar.

The above instruction contain an error about a 1" piece of 2" PVC pipe that is not needed.

Lower pole assembly made up of :

4 44" length PVC

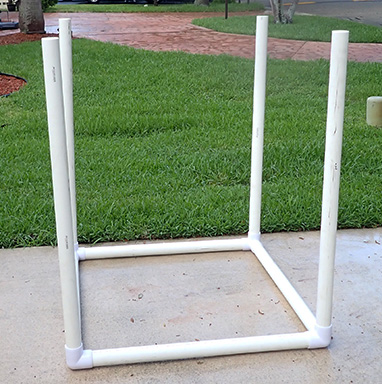

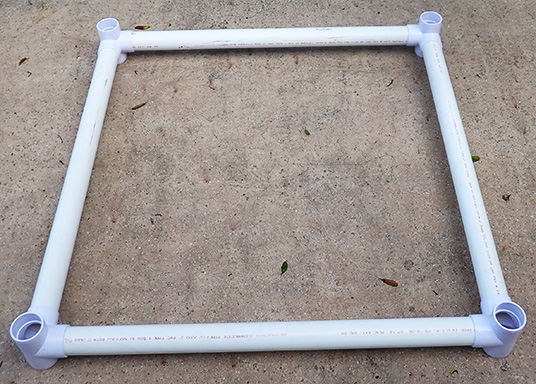

Base made up of :

4 37" length PVC

4 3-way fittings

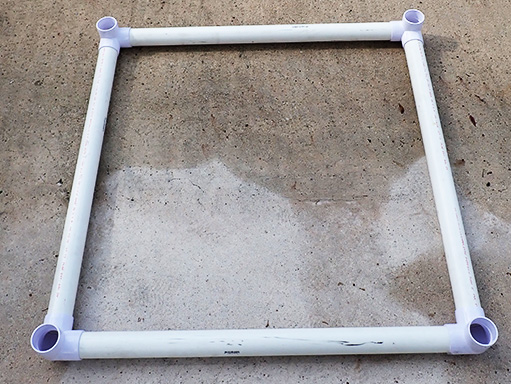

Seat assembly made up of :

4 37" length PVC

4 4-way fittings

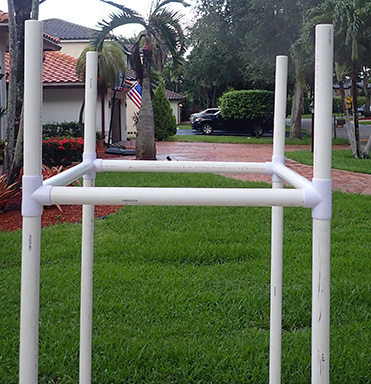

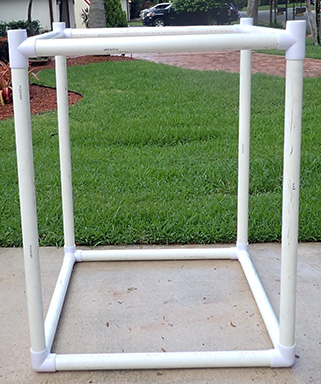

Seat assembly installed on top of 44" PCV.

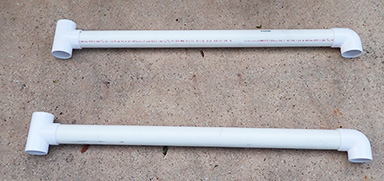

Arm assembly made up of :

2 37" length PVC

2 Tee fittings

2 90 degree fittings

Install 4 22.5" length PVC

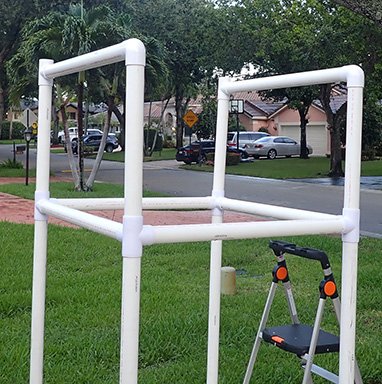

Arm assembly attached to top of 22.5" PVC

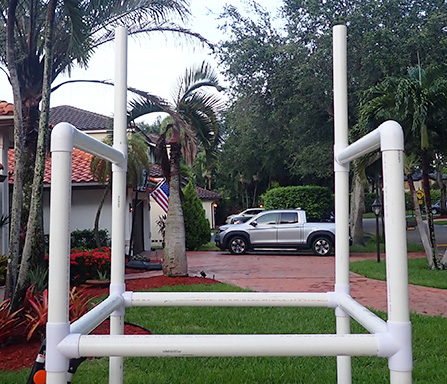

Install 2 23" length PVC

Backrest top made up of :

1 37" length PVC

2 90 degree fittings

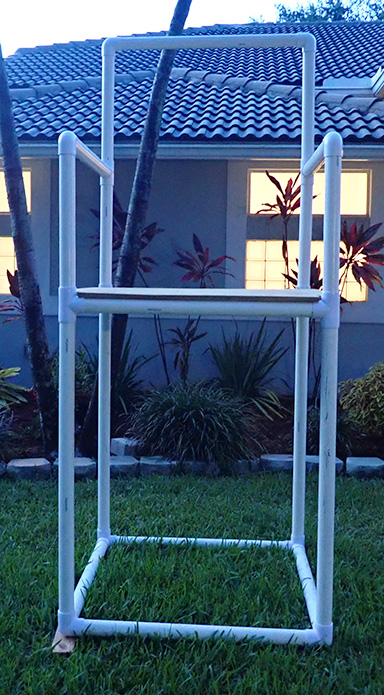

Backrest installed on top of 23" PVC
